X-FIELD RECEIVER

BIOMIMETIC SENSING FOR THE ENVIRONMENTS LEGACY SONAR LEAVES BEHIND

X-FIELD RECEIVER

SPECIFICATIONS

Frequency range

1kHz to 600+ kHz

Dynamic range

24-bit A/Ds · 1.25MHz Fs

Spatial coverage

Nearly 4π steradian

Directional coverage

Dual 7-element hexagonal arrays · 40dB L/R separation

Directivity

1.5" phone spacing · >10dB DI at 30kHz

Preamp

32dB gain with noise whitening

Power

<2W · 13–20V @ 100mA

Data

16-channel · 1.25MHz sampling · 35MB/s recording

Form factor

4.5" × 5.5" · 1 lb · low-drag copper core

SPECIFICATIONS

Frequency range

1kHz to 600+ kHz

Dynamic range

24-bit A/Ds · 1.25MHz Fs

Spatial coverage

Nearly 4π steradian

Directional coverage

Dual 7-element hexagonal arrays · 40dB L/R separation

Directivity

1.5" phone spacing · >10dB DI at 30kHz

Preamp

32dB gain with noise whitening

Power

<2W · 13–20V @ 100mA

Data

16-channel · 1.25MHz sampling · 35MB/s recording

Form factor

4.5" × 5.5" · 1 lb · low-drag copper core

HARBOR SURVEILLANCE

MINE DETECTION

OBSTACLE AVOIDANCE

PIPELINE MONITORING

SEARCH & RESCUE

TARGET TRACKING

SEARCH & RESCUE

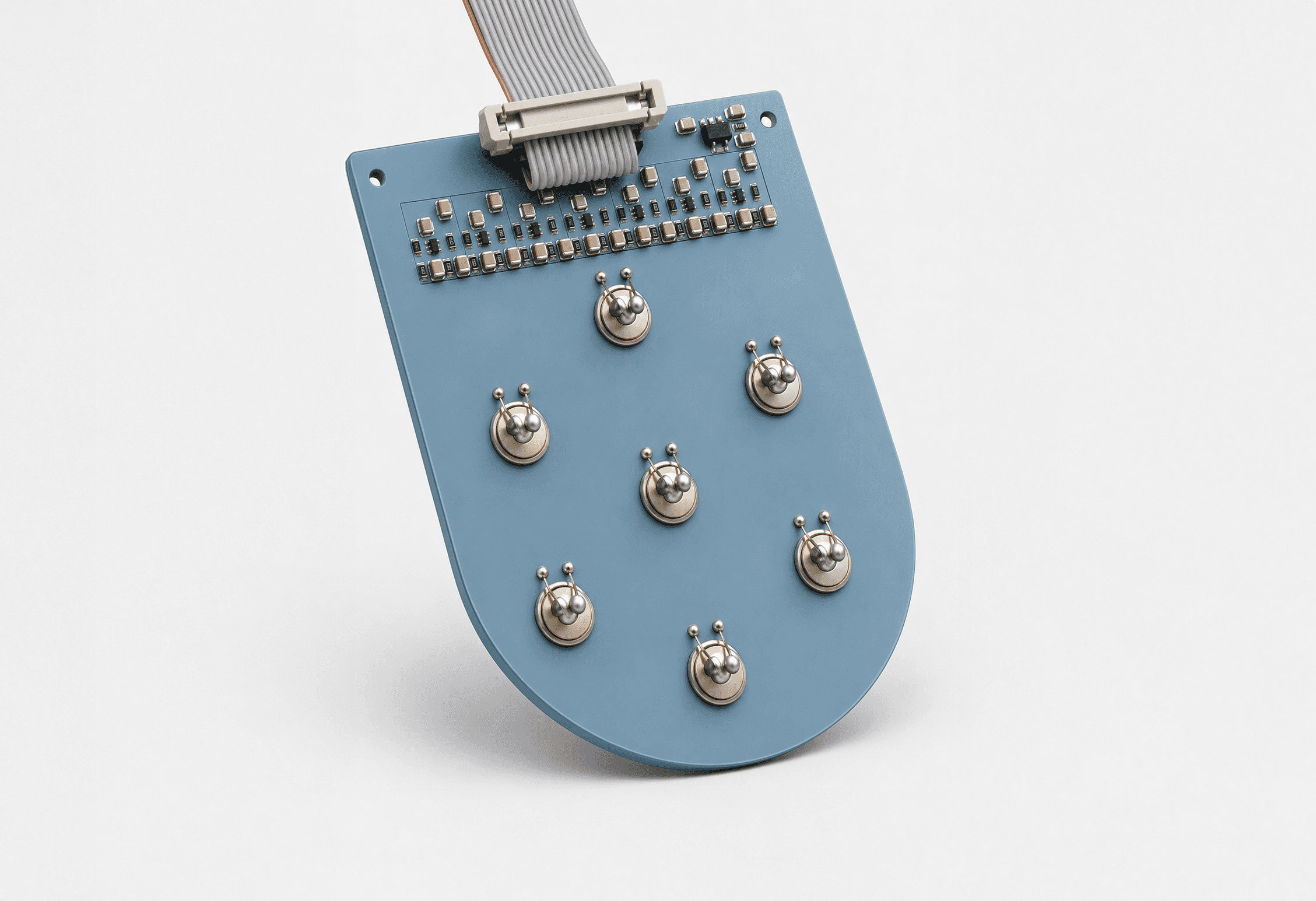

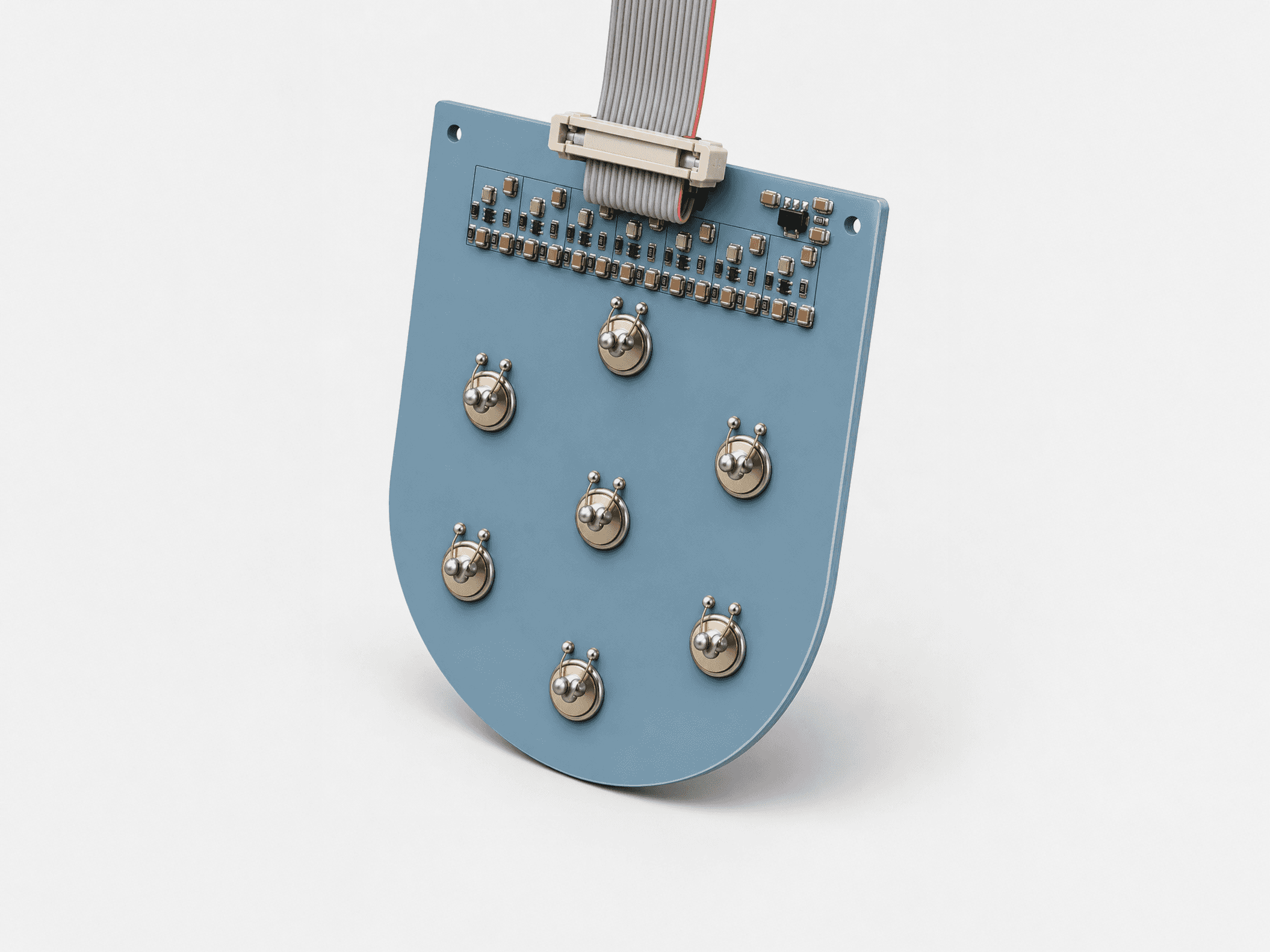

The X-FIELD is a wideband blade sensor receiver delivering near-complete spherical acoustic coverage across 1kHz to 600kHz. Designed for direct integration with UUVs and USVs, it mounts under the platform hull, reduces trim ballast, and provides real-time broadband directional sensing at under 2 watts. Dual 7-element hexagonal arrays with 40dB left-right separation give the X-FIELD exceptional directional resolution across the full frequency range — from ultra-low to ultrasonic.

Benefits

Full spatial awareness

Nearly complete spherical coverage means no acoustic blind spots. The X-FIELD detects from every direction simultaneously without platform repositioning.

Full spatial awareness

Nearly complete spherical coverage means no acoustic blind spots. The X-FIELD detects from every direction simultaneously without platform repositioning.

Ultra-low power

Operating at under 2 watts, the X-FIELD extends mission endurance on constrained UUV and USV platforms without compromising sensing capability.

Ultra-low power

Operating at under 2 watts, the X-FIELD extends mission endurance on constrained UUV and USV platforms without compromising sensing capability.

Rapid platform integration

At 4.5" × 5.5" and one pound, the X-FIELD mounts directly under UUV and USV hulls — reducing rather than adding to trim ballast.

Rapid platform integration

At 4.5" × 5.5" and one pound, the X-FIELD mounts directly under UUV and USV hulls — reducing rather than adding to trim ballast.

Broadband frequency range

95% efficiency at 1 watt per five pulses per second. Mission endurance is not compromised by acoustic source power requirements.

Broadband frequency range

95% efficiency at 1 watt per five pulses per second. Mission endurance is not compromised by acoustic source power requirements.

High directional resolution

40dB left-right separation enables precise acoustic localisation and directional discrimination in cluttered, multi-source environments.

High directional resolution

40dB left-right separation enables precise acoustic localisation and directional discrimination in cluttered, multi-source environments.

Real-time processing

16-channel digitization at 1.25MHz sampling with 35MB/s recording enables on-board or shore-side processing without data bottlenecks.

Real-time processing

16-channel digitization at 1.25MHz sampling with 35MB/s recording enables on-board or shore-side processing without data bottlenecks.

Varies — typically lower
